Plot a signed or complex network

Usage

ggsigned(g, type = "signed", attr = NULL, edge_cols = NULL, weights = FALSE)

Arguments

g: igraph object. Must have a "sign" edge attribute or an attribute containing "P", "N", "A"
type: character string. either "signed" or "complex"
attr: character string. edge attribute that containing "P", "N", "A" if type="complex"
edge_cols: colors used for negative and positive (and ambivalent) ties
weights: logical. If TRUE, weights are computed based on sign. Defaults to FALSE

Value

ggplot2 object

Details

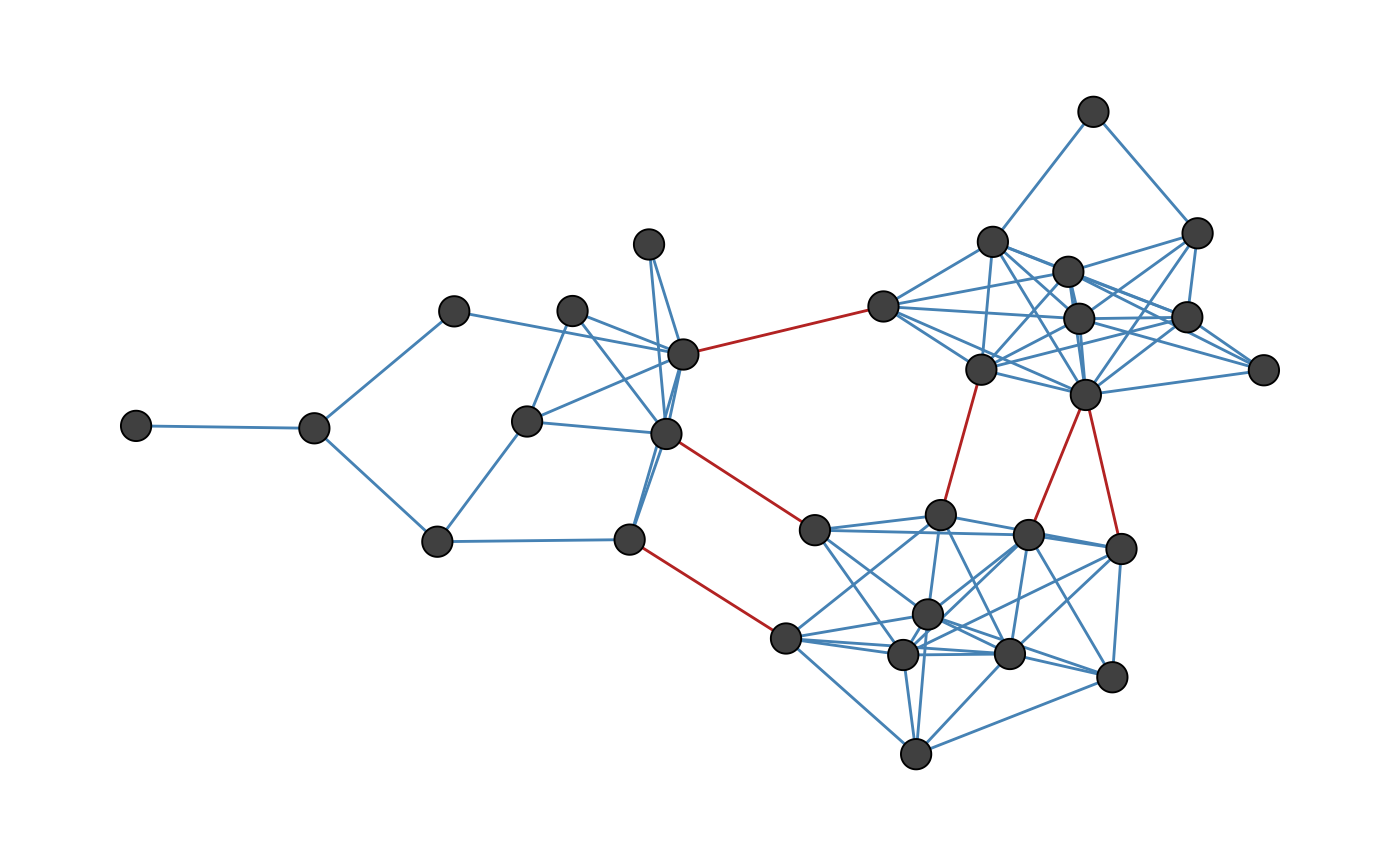

This is a very rudimentary visualization of a signed network. If you are fluent in 'ggraph', you can probably cook up something more sophisticated. The function is thus mostly meant to give a quick overview of the network.

Author

David Schoch
